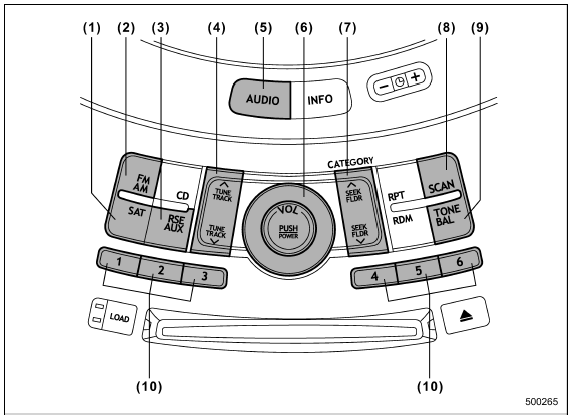

(1) Satellite radio mode button (2) FM AM mode button
(3) Auxiliary audio unit and Rear seat entertainment selection button (4) Tuning button
(5) AUDIO button
(6) Power switch, volume control dial (7) Seek button
(8) Scan button
(9) Tone and Balance button (10) Preset button

▲ Power switch and volume control

The dial (6) is used for both power (ON/ OFF) and volume control. The radio is turned ON and OFF by pushing the dial and the volume is controlled by turning the dial. The dial can also be used for tone and balance adjustment.

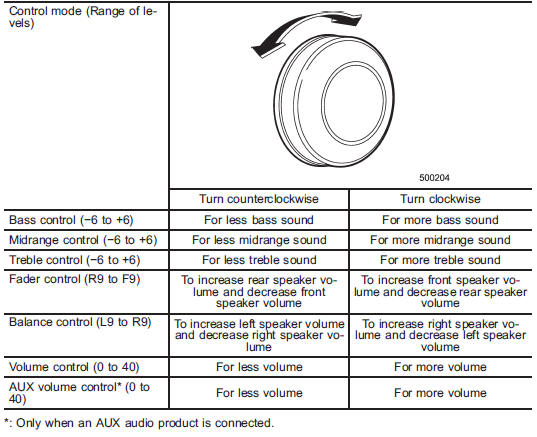

▲ Tone and balance control

The volume control dial (6) normally functions as a volume control. This dial becomes a control for Bass, Midrange, Treble, Fader or Balance when you select the appropriate tone and balance control mode.

Choose desired volume level for each mode by turning the volume control dial.

The control function returns to volume control mode after approximately 5 seconds.

▲ To change tone and balance control modes

Each brief press of the “TONE BAL” button (9) changes control modes in the following sequence starting from volume control mode. (When the radio is first turned on, the control mode is in the volume control.)

The “TONE BAL” button is used for selecting the following control modes.

▲ FM/AM radio

▲ FM/AM selection button

Push the “FM AM” button (2) when the radio is off to turn on the radio.

Push the “FM AM” button when the radio is on to select FM1, FM2 or AM reception.

▲ Stereo indicator

The stereo indicator “ST” will illuminate when an FM stereo broadcast is received.

▲ Manual tuning

Press the side of the “TUNE
TRACK” button (4) to increase the tuning frequency and press the tuning button marked
to decrease it.

Each time the button is pressed, the frequency interval can be changed between 10 kHz in the AM mode and 0.2 MHz in the FM mode.

If you hold down the side of the
button, the tuning frequency will increase continuously, and if you hold down the
side of the button, the tuning frequency will decrease continuously. Release the button when your desired frequency is reached.

NOTE

While you are holding down either side of the TUNE/TRACK button, the tuning frequency will not stop changing even if the frequency of a receivable station is reached.

▲ Seek tuning (SEEK)

If you press the or
side of the
“SEEK FLDR” button (7), the radio will automatically search for a receivable station and stop at the first one it finds.

This function may not be available, however, when radio signals are weak. In such a situation, perform manual tuning to select the desired station.

▲ Scan tuning (SCAN)

Press the “SCAN” button (8) to change the radio to the SCAN mode. In this mode, the radio scans through the radio band until a station is found. The radio will stop at the station for 5 seconds while displaying the frequency, after which scanning will continue until the entire band has been scanned from the low end to the high end. Press the “SCAN” button again to cancel the SCAN mode and to stop on any displayed frequency.

Press the or
side of the “SEEK
FLDR” button (7) again to cancel the scan mode and to stop on any displayed frequency.

When the “SCAN” button is pressed for automatic tuning, stations are scanned in the direction of low frequencies to high frequencies only.

Automatic tuning may not function properly if the station reception is weakened by distance from the station or proximity to tall buildings and hills.

▲ Selecting preset stations

Presetting a station with a preset button allows you to select that station in a single operation. Up to six AM, FM1 and FM2 stations each may be preset.

▲ How to preset stations

1. Press the “FM AM” button (2) to select FM1, FM2 or AM reception.

2. Press the “SCAN” button (8) or tune the radio manually until the desired station frequency is displayed.

3. Press and hold one of the preset buttons to store the frequency. If the button is pressed briefly, the preceding selection will remain in memory.

NOTE

• If the connection between the radio and battery is broken for any reason such as vehicle maintenance or radio removal, all stations stored in the preset buttons are cleared. If this occurs, it is necessary to reset the preset buttons.

• If a cell phone is placed near the radio, it may cause the radio to emit noise when it receives calls. This noise does not indicate a radio malfunction.

▲ Satellite radio mode (if equipped)

To receive satellite radio, it is necessary to install the SUBARU genuine satellite receiver (optional part) and to enter into a contract with a satellite radio network service such as “Sirius XMTM satellite radio” (for U.S.A. only) or “Sirius satellite radio” (for Canada only). For details, please contact your SUBARU dealer.

▲ Sirius satellite radio (for Canada only)

Refer to “Sirius satellite radio (for Canada only)”.

▲ Sirius XMTM Satellite Radio Activation (for U.S.A. only)

Refer to “Sirius XMTM Satellite Radio Activation (for U.S.A. only)”.

▲ Satellite radio reception

Refer to “Satellite radio reception”.

▲ Displaying satellite radio ID of tuner

When you activate satellite radio, you should have your satellite radio tuner ID ready because each tuner is identified by its unique satellite radio tuner ID.

The satellite radio ID will be needed when you activate satellite radio and receive satellite radio customer support.

The satellite radio ID can be found on the audio display by tuning the channel to “0”.

Turn the “TUNE/TRACK” button (4) to select the satellite radio channel.

▲ Band selection button

Push the “SAT” button (1) when the radio is off to turn on the radio.

Push the “SAT” button when the radio is on to select SAT1, SAT2 or SAT3 reception.

▲ Channel selection

Press of the “TUNE TRACK” button
(4) to select the next channel and press of the button to select the previous
channel.

Keep pressing of the button to
change to the next channel continuously and keep pressing of the button to
change to the previous channel continuously.

▲ Category selection

Press or
of the “SEEK FLDR”
button (7) to display the current category.

Press again to select the next
category, and press again to select
the previous category.

▲ Channel scan

Press the “SCAN” button (8) to change the radio to the SCAN mode. In this mode, the radio scans through the channels until a station is found. The radio will stop at the station for 5 seconds while displaying the channel number, after which scanning will continue until the entire channel has been scanned from the low end to the high end.

Also during the category selection, channel scan can be performed in that category.

Press the “SCAN” button again to cancel the SCAN mode and to stop on any displayed channel.

▲ Selecting preset channels

Presetting a channel with a preset button (10) allows you to select that channel in a single operation. Up to six, SAT1, SAT2 and SAT3 channels each may be preset.

▲ How to preset channels

1. Press the “SAT” button (1) to select SAT1, SAT2 and SAT3 reception.

2. Press the “SCAN” button (8) or the “TUNE TRACK” button (4) to select the channel.

3. Press and hold one of the preset buttons (10) to store the channel. If the button is pressed briefly, the preceding selection will remain in memory.

NOTE

If the connection between the radio and battery is broken for any reason such as vehicle maintenance or radio removal, all channels stored in the preset buttons are cleared. If this occurs, it is necessary to reset the preset buttons.

▲ Display selection

Press the “AUDIO” button (5) while receiving satellite radio to change the display as follows.

▲ Rear seat entertainment

If your vehicle is equipped with a Rear Seat Entertainment System, you can enjoy audio outputs from the system through the vehicle’s speakers by pressing the “RSE AUX” button (3). Press the button again to return to the audio set sound.

NOTE

If your vehicle is equipped with a Rear Seat Entertainment System, refer to the Owner’s Manual supplement for the Rear Seat Entertainment System for further details.
