Power window operation by driver

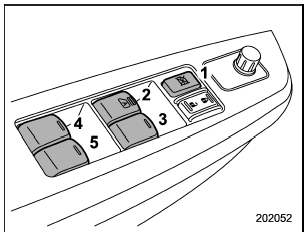

Driver’s side power window switches

1) Lock switch


1) Lock switch
2) For driver’s window (with one-touch auto up and down feature)
3) For front passenger’s window 4) For rear left window
5) For rear right window

All door windows can be controlled by the power window switch cluster at the driver side door.

Operating the driver’s window

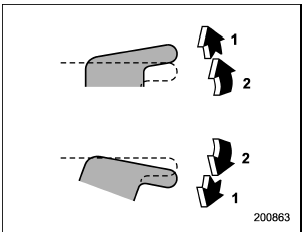

1) Automatically open/close


1) Automatically open/close 2) Open/close

To open:

Push the switch down lightly and hold it.

The window will open as long as the switch is held.

This switch also has a one-touch auto down feature that allows the window to be opened fully without holding the switch.

Push the switch down until it clicks and release it, and the window will fully open.

To stop the window halfway, pull the switch up lightly.

To close:

Pull the switch up lightly and hold it. The window will close as long as the switch is held.

This switch also has a one-touch auto up feature that allows the window to be closed fully without holding the switch.

Pull the switch up until it clicks and release it, and the window will fully close. To stop the window halfway, push the switch down lightly.

NOTE
If the vehicle’s battery is disconnected due to situations such as battery or fuse replacement, the one-touch auto up/down function is deactivated. Initialize the power window to reactivate the one-touch auto up/down function.

Refer to “Initialization of power window”

Anti-entrapment function

CAUTION
Never attempt to test this function using fingers, hands or other parts of your body.

The anti-entrapment function may not operate properly if some object gets trapped just before the window fully closes.

NOTE
If a window detects an impact similar to that caused by trapping an object (for example, when the vehicle encounters a deep pothole), the anti-entrapment function may operate.

The window cannot be operated for a few seconds after the anti-entrapment function operates.

If the vehicle’s battery is disconnected due to situations such as battery or fuse replacement, the antientrapment function is deactivated.

Initialize the power window to reactivate the anti-entrapment function. Refer to “Initialization of power window”.

While closing the driver’s window automatically, if the window senses a substantial enough object trapped between the window and the window frame, it automatically moves down slightly and stops.

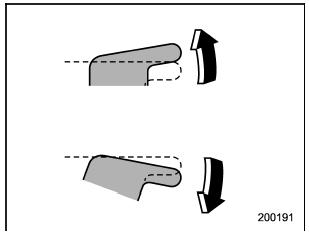

Operating the passengers’ windows

To open:


To open:

Push the appropriate switch down and hold it until the window reaches the desired position.

To close:

Pull the switch up and hold it until the window reaches the desired position.

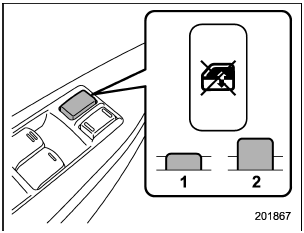

Locking the passengers’ windows

1) Lock


1) Lock
2) Unlock

To lock:

Press the lock switch. When the lock switch is in the lock position, the passengers’ windows cannot be opened or closed.

To unlock:

Press the lock switch again.
