Multi function display (Non-US vehicles only; if equipped)

Subaru XV Crosstrek / Subaru XV Crosstrek 2011-2019 Owners Manual / Instruments and controls / Multi function display (Non-US vehicles only; if equipped)

WARNING
Always pay adequate attention to safe driving when operating the multi function display while the vehicle is in motion. When operation of the multi-function display is disturbing your awareness and ability to concentrate on driving, stop the vehicle before performing operations on the screen.

Also, do not concentrate on the display while driving. Doing so may cause you to look away from the road and could result in an accident.

Adjust the beep volume so that you can hear noises in the environment outside while driving.

If you drive the vehicle without hearing noises in the environment outside, an accident may occur.

Various information will be shown on the multi function display. Also, a warning message will appear on the display if a malfunction is detected. In addition, several settings for the displayed content can be performed.

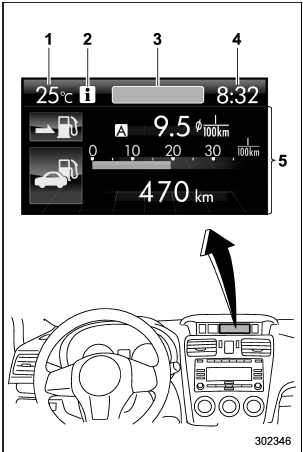

Multi function display


Multi function display

1) Outside temperature indicator 2) Information reminder
3) Top display (For the display setting, refer to “Top display setting”) 4) Clock
5) Driving information display (For the displayed contents, refer to “Basic screens”

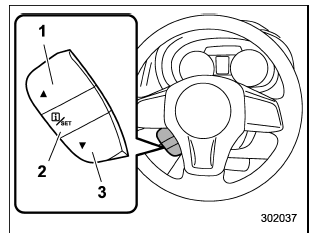

Control switch


Control switch

1) Up (select)

2) Set (enter)

3) Down (select)
