Components

The SRS airbags are stowed in the

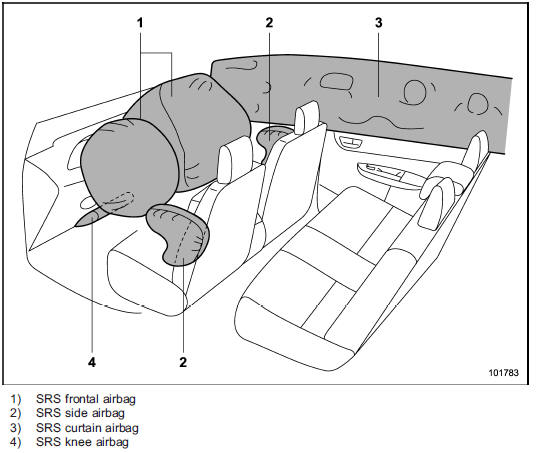

The SRS airbags are stowed in the following locations.

Driver’s SRS frontal airbag: in the center portion of the steering wheel Front passenger’s SRS frontal airbag: near the top of the dashboard under an “SRS AIRBAG” mark
SRS side airbag: in the door side of each front seat seatback which bears an “SRS AIRBAG” label
SRS curtain airbag: in the roof side (between the front pillar and a point behind the rear quarter glass) An “SRS AIRBAG” mark is located at the top of each center pillar.

SRS knee airbag: under the steering column

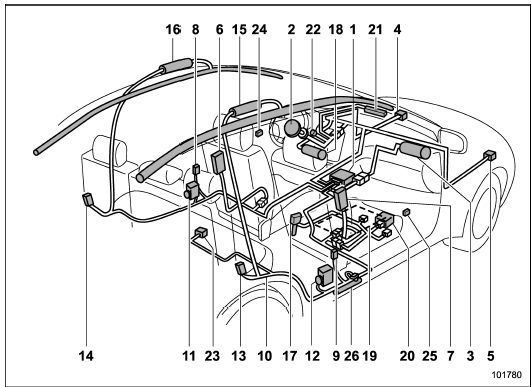

1) Airbag control module (including impact


1) Airbag control module (including impact sensor and rollover sensor) 2) Frontal airbag module (driver’s side) 3) Frontal airbag module (front passenger’s side)
4) Front impact sensor (left-hand side) 5) Front impact sensor (right-hand side) 6) Side airbag module (driver’s side) 7) Side airbag module (front passenger’s side)
8) Side airbag sensor (center pillar left-hand side)
9) Side airbag sensor (center pillar righthand side)
10) Airbag wiring
11) Seatbelt pretensioner (driver’s side) 12) Seatbelt pretensioner (front passenger’s side)
13) Curtain airbag sensor (rear wheel house right-hand side)
14) Curtain airbag sensor (rear wheel house left-hand side)
15) Curtain airbag module (right-hand side) 16) Curtain airbag module (left-hand side) 17) Seatbelt buckle switch (front passenger’s side)
18) Knee airbag module (driver’s side) 19) Front passenger’s occupant detection system sensor
20) Front passenger’s occupant detection control module
21) Front passenger’s frontal airbag ON and OFF indicator
22) SRS airbag system warning light 23) Satellite safing sensor (under the rear center seat)
24) Front door impact sensor (left-hand side) 25) Front door impact sensor (right-hand side)
26) Lap belt pretensioner (front passenger’s side)
