System maintenance

NOTE
In the event that the vehicle’s battery is replaced, discharged or disconnected, it will be necessary to start the vehicle a minimum of one time using the key prior to activating the remote engine start system. This is required to allow the vehicle electronic systems to resynchronize.

Changing the batteries

CAUTION
Do not let dust, oil or water get on or in the remote engine start transmitter when replacing the battery.

Be careful not to damage the printed circuit board in the remote engine start transmitter when replacing the battery.

Be careful not to allow children to touch the battery and any removed parts; children could swallow them.

There is a danger of explosion if an incorrect replacement battery is used. Replace only with the same or equivalent type of battery.

Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

The two 3-volt lithium batteries (model CR-2032) supplied in your remote engine start transmitter should last approximately one year, depending on usage. When the batteries begin to weaken, you will notice a decrease in range (distance from the vehicle that your remote control operates).

Follow the instructions below to change the remote engine start transmitter batteries.

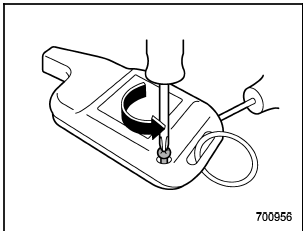

1. Remove the small phillips screw located


1. Remove the small phillips screw located on the back side lower left corner of the transmitter.

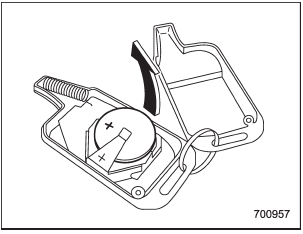

2. Carefully pry the remote engine start transmitter halves apart using a small flathead screwdriver.


3. Remove the circuit board from the

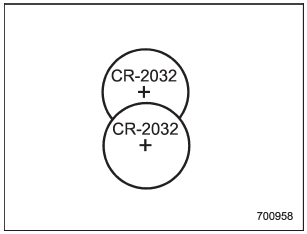

3. Remove the circuit board from the bottom half of the case and remove the batteries and replace with new ones. Be sure to observe the (+) sign on the old batteries before removing them to ensure that the new batteries are inserted properly (battery “+” should be pointed away from the transmitter circuit board on both batteries).

4. Carefully snap the case halves back together, reinstall the phillips screw and test the remote engine start system.

NOTE
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment and void warranty.

To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.
