Checking the fluid level

Never let brake fluid contact your eyes because brake fluid can be harmful to your eyes. If brake fluid gets in your eyes, immediately flush them thoroughly with clean water. For safety, when performing this work, wearing eye protection is advisable.

Brake fluid absorbs moisture from the air. Any absorbed moisture can cause a dangerous loss of braking performance.

If the vehicle requires frequent refilling, there may be a leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer.

When adding brake fluid, be careful not to allow any dirt into the reservoir.

Never splash the brake fluid over painted surfaces or rubber parts. Alcohol contained in the brake fluid may damage them.

Be careful not to spill brake fluid when adding it. If brake fluid touches the exhaust pipe, it may cause a bad smell, smoke, and/or a fire. If brake fluid gets on the exhaust pipe, be sure to wipe it off.

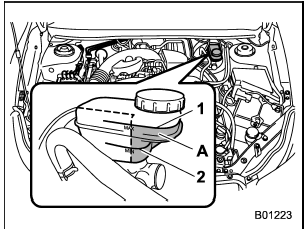

1) “MAX” level line

1) “MAX” level line
2) “MIN” level line
A) The brake fluid level must be checked in this area.

Check the fluid level monthly.

Check the fluid level on the outside of the reservoir. Because this reservoir is used for both the brake and clutch systems and has chambers for each system, be sure to check the fluid level for the brake system at the front part of the reservoir (shaded area in the illustration). If the fluid level is below “MIN”, add the recommended brake fluid to “MAX”.

Use only brake fluid from a sealed container.
