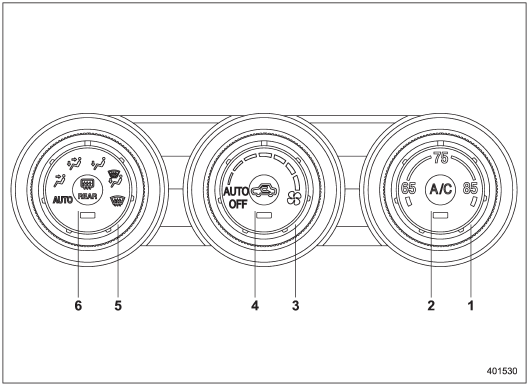

Type B

1) Temperature control dial (Refer to “Automatic


1) Temperature control dial (Refer to “Automatic climate control operation (type B, C and D)” F4-7 and/or “Temperature control” F4-9.) 2) Air conditioner button (Refer to “Air conditioner control” .)
3) Fan speed control dial (Refer to “Automatic climate control operation (type B, C and D)” F4-7 and/or “Fan speed control” .) 4) Air inlet selection button (Refer to “Air inlet selection” .)
5) Airflow mode selection dial (Refer to “Automatic climate control operation (type B, C and D)” F4-7 and/or “Airflow mode selection” F4-8.)
6) Rear window defogger button (Refer to “Defogger and deicer” .)

NOTE

The controllable temperature range may vary depending on the regional specifications of the vehicle.
