Combination meter

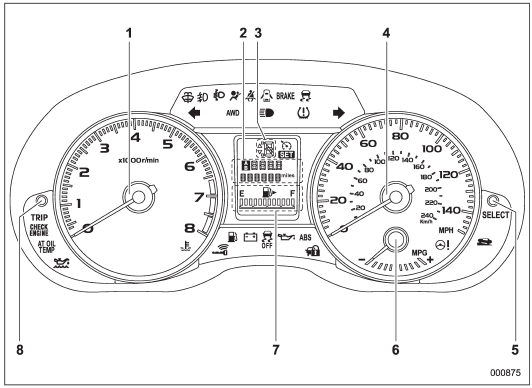

! U.S.-spec. models (type A)

The illustration above is a typical example. For some models, the combination


The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

1) Tachometer
2) Trip meter and odometer 3) Select lever/gear position indicator 4) Speedometer
5) Information display selection knob 6) ECO gauge (if equipped) 7) Fuel gauge
8) Trip meter A/B selection and trip meter reset knob

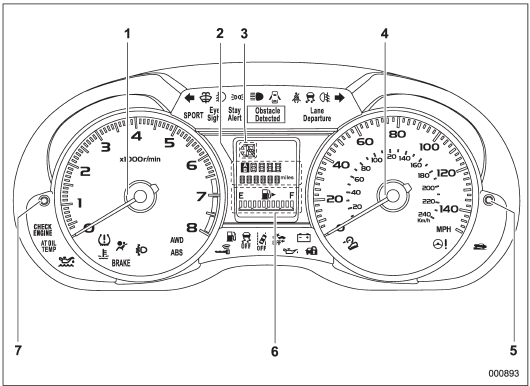

! U.S.-spec. models (type B)

The illustration above is a typical example. For some models, the combination


The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

1) Tachometer
2) Trip meter and odometer 3) Select lever/gear position indicator 4) Speedometer
5) Information display selection knob 6) Fuel gauge
7) Trip meter A/B selection and trip meter reset knob

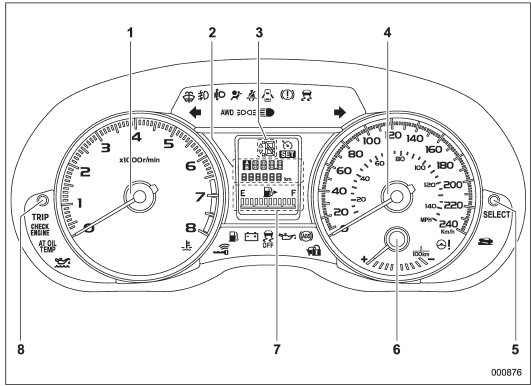

Except U.S.-spec. models

The illustration above is a typical example. For some models, the combination


The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

1) Tachometer
2) Trip meter and odometer 3) Select lever/gear position indicator 4) Speedometer
5) Information display selection knob 6) ECO gauge (if equipped) 7) Fuel gauge
8) Trip meter A/B selection and trip meter reset knob
