SRS airbag system monitors

A diagnostic system continually monitors

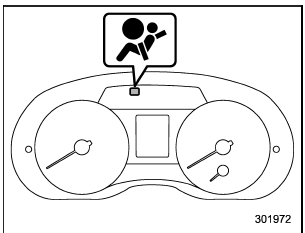

A diagnostic system continually monitors the readiness of the SRS airbag system (including front seatbelt pretensioners) while the vehicle is being driven. The SRS airbag system warning light will show normal system operation by illuminating for approximately 6 seconds when the ignition switch is turned to the “ON” position.

The following components are monitored by the indicator: Front sub sensor – Right-hand side
– Left-hand side
Airbag control module (including impact sensor [all models] and rollover sensor [XV CROSSTREK models]) Frontal airbag module – Driver’s side
– Front passenger’s side Knee airbag module (driver’s side) Side airbag sensor – Center pillar right-hand side – Center pillar left-hand side Front door impact sensor – Right-hand side
– Left-hand side
Side airbag module – Driver’s side
– Front passenger’s side Curtain airbag sensor – Rear wheel house right-hand side – Rear wheel house left-hand side Curtain airbag module – Right-hand side
– Left-hand side
Satellite safing sensor (under the rear center seat)
Seatbelt pretensioner – Driver’s side
– Front passenger’s side Lap belt pretensioner (front passenger’s side in XV CROSSTREK models) Seatbelt buckle switch (front passenger’s side)
Front passenger’s occupant detection system sensor
Front passenger’s occupant detection control module
Front passenger’s frontal airbag ON and OFF indicator
All related wiring

WARNING
If the warning light exhibits any of the following conditions, there may be a malfunction in the seatbelt pretensioners and/or SRS airbag system. Immediately take your vehicle to your nearest SUBARU dealer to have the system checked. Unless checked and properly repaired, the seatbelt pretensioners and/or SRS airbag will not operate properly in the event of a collision, which may increase the risk of injury.

Flashing or flickering of the warning light

No illumination of the warning light when the ignition switch is first turned to the “ON” position

Continuous illumination of the warning light

Illumination of the warning light while driving
