Driving information display

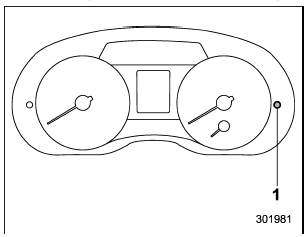

1) Information display selection knob


1) Information display selection knob

With the ignition switch in the “ON” position, each successive press of the information display selection knob switches the display in the following sequence.

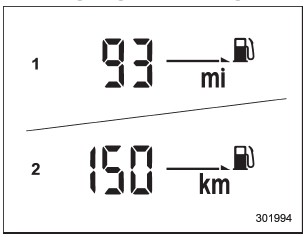

Driving range on remaining fuel


Driving range on remaining fuel

1) U.S.-spec. models


1) U.S.-spec. models
2) Except U.S.-spec. models

The driving range indicates the distance that can be driven taking into account the amount of fuel remaining in the tank and the average rate of fuel consumption.

When the low fuel warning light illuminates, the driving range display flashes for 5 seconds. (The display first switches to the driving range value if a different value was previously displayed.)

1) U.S.-spec. models


1) U.S.-spec. models
2) Except U.S.-spec. models

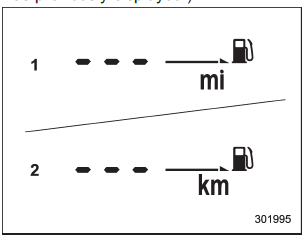

If the driving range is shown as “”,
”, there is only a tiny amount of fuel left in the tank. You must refuel the vehicle immediately.

NOTE
The driving range on remaining fuel is only a guide. The indicated value may differ from the actual driving range on remaining fuel, so you must immediately fill the tank when the low fuel warning light illuminates.

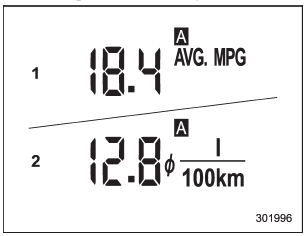

Average fuel consumption

1) U.S.-spec. models


1) U.S.-spec. models
2) Except U.S.-spec. models

This display shows the average rate of fuel consumption since the trip meter was last reset.

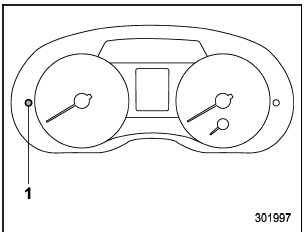

1) Trip knob


1) Trip knob

Pressing the trip knob toggles the display between the average fuel consumption corresponding to the A trip meter display and the average fuel consumption corresponding to the B trip meter display.

When either of the trip meter displays is reset, the corresponding average fuel consumption value is also reset.

NOTE
The indicated values vary in accordance with changes in the vehicle’s running conditions. Also, the indicated values may differ slightly from the actual values and should thus be treated only as a guide.

When either trip meter display is reset, the average fuel consumption corresponding to that trip meter display is not shown until the vehicle has subsequently covered a distance of 1 mile (or 1 km).

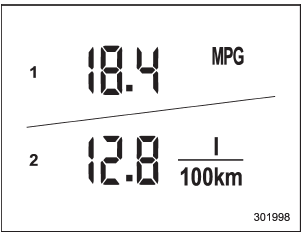

Current fuel consumption

1) U.S.-spec. models


1) U.S.-spec. models
2) Except U.S.-spec. models

This indication shows the rate of fuel consumption at the present moment.

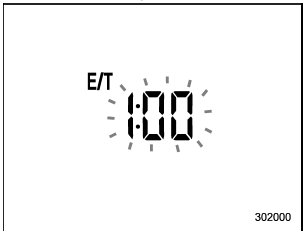

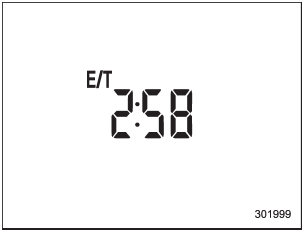

Journey time

The journey time shows the time that has


The journey time shows the time that has elapsed since the ignition switch was turned to the “ON” position.

The journey time indication flashes each


The journey time indication flashes each time a complete hour has elapsed. If the display is giving a reading other than the journey time, the display switches to the journey time, flashes for 5 seconds, and returns to its original reading each time a complete hour has elapsed.

NOTE
The journey time is reset when the ignition switch is turned to the “LOCK” position. It is also reset if the ignition switch is turned to the “LOCK” or “ACC” position prior to restarting of the engine.

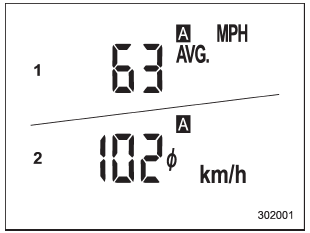

Average vehicle speed

1) U.S.-spec. models


1) U.S.-spec. models
2) Except U.S.-spec. models

This display shows the average vehicle speed since the trip meter was last reset.

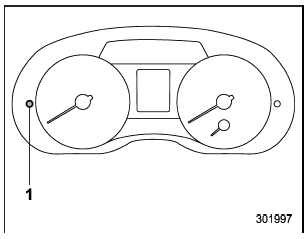

1) Trip knob


1) Trip knob

Pressing the trip knob toggles the display between the average vehicle speed corresponding to the A trip meter display and the average vehicle speed corresponding to the B trip meter display.

When either of the trip meter displays is reset, the corresponding average vehicle speed value is also reset.

NOTE
When either trip meter display is reset, the average vehicle speed corresponding to that trip meter display is not shown until the vehicle has subsequently covered a distance of 1 mile (or 1 km).

Turn off display of driving information display

The driving information display can be turned off.

To turn off the display, turn the ignition switch to the “LOCK” position and press the “+” button adjacent to the clock display for approximately 5 seconds. Then, the driving information display and the clock display will blink for 3 seconds to notify you that the driving information display has been turned off.

To restore the driving information display, once again press the “+” button for approximately 5 seconds.

NOTE
The initial display setting of the driving information display has been set to operational at the time of shipment from the factory.

The average fuel consumption and average vehicle speed are calculated even while the driving information display is not displayed.

Even if you turn off the driving information display, the display will automatically turn on when the battery voltage is disconnected and then reconnected for battery replacement or fuse replacement.
