Airflow mode selection

To select the airflow mode:

Type A, B and C:

Turn the airflow mode selection dial.

Type D:

Press the airflow mode selection button.

To select the defrost mode:

Type A and B:

Turn the airflow mode selection dial.

Type C and D

: Press the defroster button.

Airflow modes are as follows.

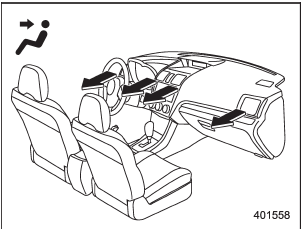

(Ventilation): Instrument panel outlets


(Ventilation):

Instrument panel outlets

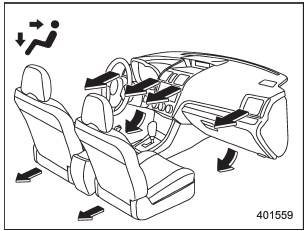

(Bi-level): Instrument panel outlets and


(Bi-level)

: Instrument panel outlets and foot outlets

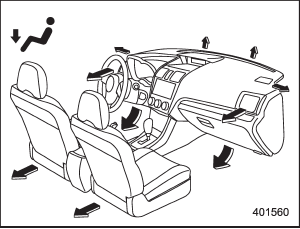

(Heat): Foot outlets, both side outlets of


(Heat):

Foot outlets, both side outlets of the instrument panel and some through windshield defroster outlets (A small amount of air flows to the windshield and both side windows to prevent fogging.)

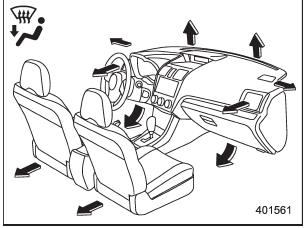

(Heat-def): Windshield defroster outlets,


(Heat-def)

: Windshield defroster outlets, foot outlets and both side outlets of the instrument panel.

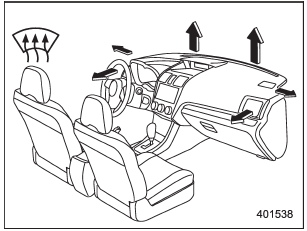

(Defrost): Windshield defroster outlets


(Defrost):

Windshield defroster outlets and both side outlets of the instrument panel.
