Auxiliary input jack

You can connect an external audio device


You can connect an external audio device to the vehicle’s audio system and play back audio via the vehicle’s speakers.

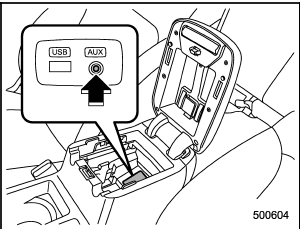

An auxiliary (AUX) input jack is present in the center console. A stereo mini pin plug (3.5ø) can be inserted in this jack. The connection cable is available at electrical appliance or similar stores.

To use the AUX input jack:

1. Connect a portable audio player to the AUX input jack.

2. Press the “CD/AUX” button on the


2. Press the “CD/AUX” button on the audio control panel to select the AUX mode. Refer to “When CD is in the player”.

3. Play back the portable audio player.

Refer to the instruction manual for the portable audio player.

NOTE
The output sound of the portable audio player is not loud, and the sound via the vehicle’s speakers that are connected to the vehicle audio set may be very low. If you turn up the volume of the audio set, the volume becomes louder. However, when you change from one portable audio player to another one, the volume levels via the vehicle’s speakers may be significantly louder compared to the prior device. To avoid a large volume difference, turn down the volume when you change between portable audio players.

In some cases, when the sound volume of the portable audio player is low, the sound quality may become impaired when you turn up the volume of the vehicle audio system. In this case, adjust the sound volume of the portable audio player.

In some cases, noise occurs because of a bad connection between the portable player and the vehicle audio system. Try cleaning the stereo jack and audio plug.

  If the noise is not reduced, check for disconnection of the cord or a malfunction of the portable player.
